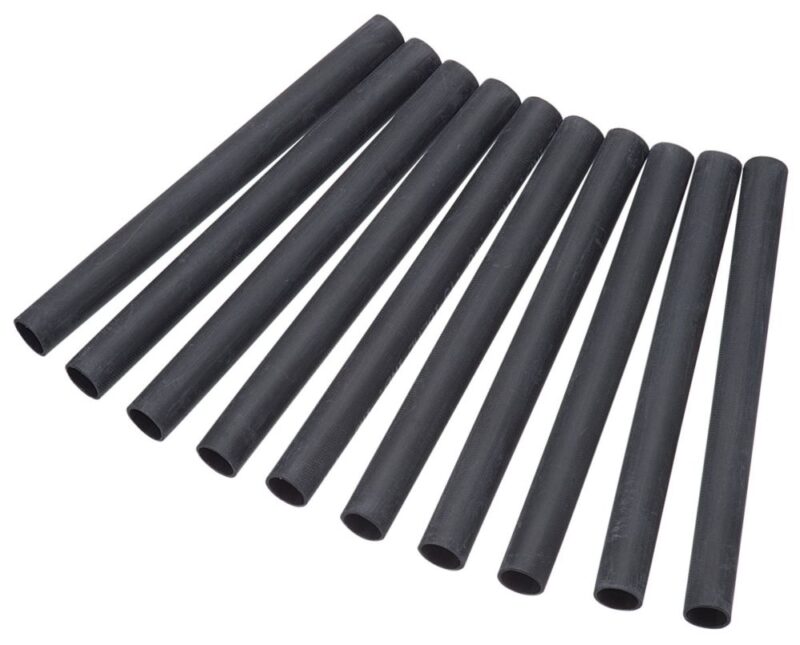

Ideal 46-346 Heat Shrink Tubing 48″ 12-6 Awg
$212.05
Description:
Ideal 46-346 Heat Shrink Tubing, 48″, 12-6 Awg
Ideal 46-346 Heat Shrink Tubing, 48″, 12-6 Awg
Technical Description:
Heat Type; Cross Linked Polyolefin Material; 48 Inch; 0.4 Inch min. Expanded Diameter; 0.15 Inch Max. Recovered Diameter; 12 to 6 AWG Cable Size; UL 486D, CSA C22.2 Approval; 600 V Voltage Rating; 0.06 Inch Thickness; -55 to 110 Deg C Temperature Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325046346 |
| Shrink Ratio: | 3:1 |
| Minimum Expanded Diameter: | 0.4 Inch |
| Maximum Recovered Diameter: | 0.15 Inch |
| Length: | 48 Inch |
| Thickness: | 0.06 Inch |
| Temperature Rating: | -55 to 110 Deg C |
| Approval: | UL 486D, CSA C22.2 |
| Additional Information: | Applicable Standard MIL-DTL-23053/15, IEEE 383, ANSI C37.20.2, ICEA S-19-8, NEMA; Tensile Strength 2,100 PSI; Specific Gravity 1.20 Max; Low Temperature Brittle Point -55 Deg C; Dielectric Strength 500 V/Mil; Application Above Grade, Underground or Underw |
| Catalog Number: | 46-346 |
| Brand Name: | Thermo-Shrink[R] |
| Type: | Heat |
| Voltage Rating: | 600 V |
| Cable Size: | 12 to 6 AWG |
| Wall Type: | Heavy |
| Shrink Temperature: | 120 to 250 Deg C |
| Material: | Cross Linked Polyolefin |
| CATALOG DESCRIPTION: | IDEAL, HEAT SHRINKABLE TUBE, THERMO-SHRINK, HEAVY-WALL HEAT SHRINK TUBING, SHRINK RATIO: 3:1, THICKNESS: 060 IN, LENGTH: 48 IN, VOLUME RESISTIVITY: 1013 OHM -CM MIN, DIELECTRIC STRENGTH: 500 V/MIL (20 KV MINT), CONTINUOUS OPERATING TEMPERATURE: -55 TO 110 DEG C, MINIMUM SHRINK TEMPERATURE: 120 – 250 DEG C (200 DEG C RECOMMENDED), LOW TEMPERATURE FLEXIBILITY: -55 DEG C, HEAT SHOCK: NO CRACKS, FLOWING OR DRIPPING (4 HR AT 225 DEG C), WATER ABSORPTION: 0.5 PCT, HEAT AGING: 500 PCT (168 HR AT 175 DEG C TENSILE STRENGTH ELONGATION), CABLE RANGE: 8 – 6 AWG, NOMINAL RECOVEREDI.D. (MAX.): 0.150 IN, EXPANDED I.D. (MIN.): 0.400, COPPER CORROSION: NON-CORROSIVE, ULTIMATE ELONGATION: 600 PCT MIN., MODEL: TS-46-400 |
| Category: | Insulating Materials |
| Full Technical Description: | Heat Type; Cross Linked Polyolefin Material; 48 Inch; 0.4 Inch min. Expanded Diameter; 0.15 Inch Max. Recovered Diameter; 12 to 6 AWG Cable Size; UL 486D, CSA C22.2 Approval; 600 V Voltage Rating; 0.06 Inch Thickness; -55 to 110 Deg C Temperature Rating; 3:1 Shrink Ratio; Heavy Wall Type; 120 to 250 Deg C Shrink Temperature; THERMO-SHRINK[R] Brand; Applicable Standard mil-Dtl-23053/15, IEEE 383, ANSI C37.20.2, ICEA S-19-8, NEMA; Tensile Strength 2,100 psi; Specific Gravity 1.20 Max; Low Temperature Brittle Point -55 Deg C; Dielectric Strength 500 V/Mil; |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 46-346 Heat Shrink Tubing, 48″, 12-6 Awg |
| Sub-Category: | Individual Cable Tubing |
| UNSPSC: | 39121723 |
| UPC 12 Digit: | 783250463466 |
| Unique Product Key: | 5586199 |
