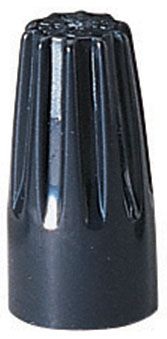

Ideal 30-3629 Wire-Nut 73B Wire Connector Black 100 Pack
$22.00
Description:
Ideal 30-3629 Wire-Nut 73B Wire Connector,Black 100 Pack
Ideal 30-3629 Wire-Nut 73B Wire Connector,Black 100 Pack
Technical Description:
Positive Grip Type; Black Color; (1) #18, (1) #20 min. Wire Combination Size; (2) #14 Max. Wire Combination Size; 22 to 14 AWG Wire Size; UL, CSA Approval; 600 Volt Voltage Rating; 302 Deg F Temperature Rating; 100 Per Box Standard Package
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325045541 |
| Maximum Wire Combination Size: | (2) #14 |
| Spring Type: | Fixed, Square Wire |
| Shell Material: | Zinc Plated, Thermoplastic Polyester |
| Color: | Black |
| Temperature Rating: | 302 Deg F |
| Standard Package: | 100 per Box |
| Approval: | UL, CSA |
| Additional Information: | RoHS Compliant; Material Steel (Insert) |
| Catalog Number: | 30-3629 |
| Brand Name: | Ideal |
| Model: | 73B |
| Type: | Positive Grip |
| Voltage Rating: | 600 Volt |
| Wire Type: | Copper |
| Wire Size: | 22 to 14 AWG |
| Minimum Wire Combination Size: | (1) #18, (1) #20 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, WIRE-NUT, HIGH TEMPERATURE TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 5, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-0 FLAME-RETARDANT SHELL RATED AT 150 DEG C (302 F), CONDUCTOR RANGE: 22 – 14 AWG, MIN 1 -18 W/ 1-20, MAX 4-16 W/ 1-20, MATERIAL: THERMOPLASTIC POLYESTER, COLOR: BLACK, VOLTAGE RATING: 600 V, MODEL NUMBER: 73B, WIDTH: 7/16 IN, HEIGHT: 55/64 IN |
| Category: | Patch Cords & Jumpers |
| Full Size Image | |
| Full Technical Description: | Positive Grip Type; Black Color; (1) #18, (1) #20 min. Wire Combination Size; (2) #14 Max. Wire Combination Size; 22 to 14 AWG Wire Size; UL, CSA Approval; 600 Volt Voltage Rating; 302 Deg F Temperature Rating; 100 Per Box Standard Package; Copper Wire Type; Zinc Plated, Thermoplastic Polyester Shell Material; Fixed, Square Wire Spring Type; WIRE-NUT[R] Brand; RoHS Compliant; Material Steel (Insert); 73B Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-3629 Wire-Nut 73B Wire Connector,Black 100 Pack |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250455416 |
| Unique Product Key: | 5796635 |
| comm code enhanced: | 64200 |
