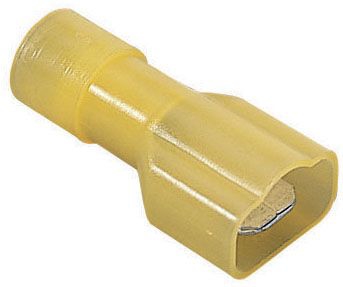

Ideal 84-9791 Fully Insulated Female Disconnect Terminal #12 To #10 Awg
$350.43
Description:
Ideal 84-9791 Fully Insulated Female Disconnect Terminal, #12 To #10 Awg
Ideal 84-9791 Fully Insulated Female Disconnect Terminal, #12 To #10 Awg
Technical Description:
Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 774A, CUL Approval; 105 Deg C Temperature Rating; 500 Per Carton Standard Package; Nylon Fully Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325049311 |
| Standard Package: | 500 per Carton |
| Approval: | UL 774A, CUL |
| Additional Information: | Barrel Type Brazed/Butted Seam; Material Tin-Plated Brass; Voltage Rating 300 V; Wire Insulation Diameter 0.244 Inch |
| Catalog Number: | 84-9791 |
| Type: | Funnel Entry |
| Tab Size: | 0.25 Inch x 0.032 Inch |
| Minimum Conductor Size: | 12 AWG |
| Maximum Conductor Size: | 10 AWG |
| Color: | Yellow |
| Insulation Type: | Nylon Fully Insulated |
| Temperature Rating: | 105 Deg C |
| CATALOG DESCRIPTION: | IDEAL, DISCONNECT TERMINAL, FULLY INSULATED, WIRE SIZE: 12 – 10 AWG, VOLTAGE RATING: 300 V, MATERIAL: NYLON, INSULATION: 0.244 IN DIAMETER, CONNECTION: FEMALE, TAB SIZE: 0.250 IN X 032 IN, TEMPERATURE RATING: 105 DEG C |
| Category: | Small Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 774A, CUL Approval; 105 Deg C Temperature Rating; 500 Per Carton Standard Package; Nylon Fully Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Barrel Type Brazed/Butted Seam; Material Tin-Plated Brass; Voltage Rating 300 V; Wire Insulation Diameter 0.244 Inch |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 84-9791 Fully Insulated Female Disconnect Terminal, #12 To #10 Awg |
| Sub-Category: | Female Disconnect |
| UNSPSC: | 39121447 |
| UPC 12 Digit: | 783250493111 |
| Unique Product Key: | 5610029 |
| comm code enhanced: | 64110 |
